YSHX-2845 Series
Description of high pressure water jetting:

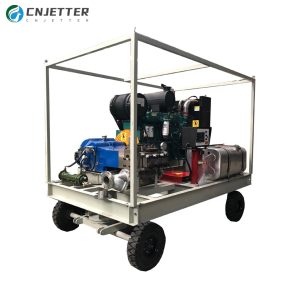

YSHX-2845 series cleaning machine is used to dredge and remove the blockage and dirt in the pipeline and Air preheater, Gas heater. It can be equipped with a fuel engine (or electric motor) as the power to drive the high-pressure pump, and the reaction force of the pressure generated by the high-pressure water jet in the nozzle hole is used to push the nozzle and drive the hose to move forward in the pipeline by itself. The jet beam washes the dirt on the pipe wall. When the nozzle reaches the end of the pipe, the hose is forced to move back under the pulling force of the hose reel. At this time, the high-pressure water jet will bring the dirt out of the pipe to achieve the purpose of cleaning the pipe. . The product can be configured as a mobile or fixed device, equipped with a towable heavy-duty pneumatic tire base, fuel engine, high-pressure pump, battery, safety valve, relief valve, pressure relief valve, pressure gauge, water tank, fuel tank, hose reel , Piping systems, high-pressure hoses, pipe cleaning nozzles, etc. At the same time, the equipment can perform a variety of cleaning operations, such as the configuration of hand-held spray guns to clean public facilities such as exterior walls.
Features of high pressure water jetting :
YSHX-2845 series mobile cleaning machine has simple operation and convenient maintenance. Compared with similar products, it can double the work efficiency and reduce labor costs. The high-pressure pump and main components of the mobile sewer cleaning machine are all manufactured by our company, which can provide customers with great convenience in use and maintenance.
Application fields: This high pressure water jetting machine can be used in hotels, restaurants, various buildings, real estate communities, municipal sanitation and industrial and mining enterprises to clean various water and sewage pipes, sewage pipes, etc. The cleaning efficiency is high, and the cleaning can be completed in about 10 minutes. Equipped with a hand-held cleaning gun, it can clean exterior walls, containers, equipment shells, etc.
- 240Bar, 250L/min, 160KW Diesel Engine.
- 240Bar, 480L/min, 255KW Diesel Engine.
300Bar, 260L/min, 238KW Diesel Engine.
